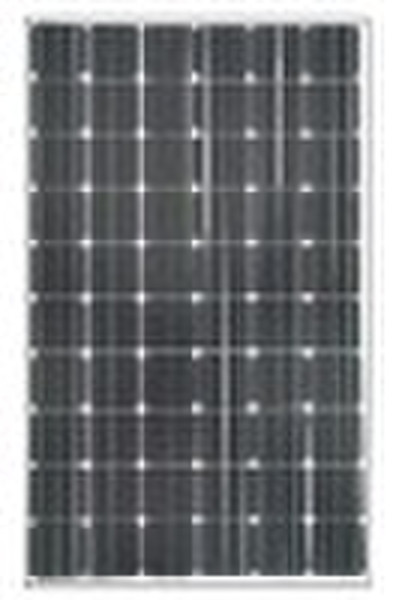

Mono-crystalline PV Modules

Stable electrical performance High conversion rate ,close to the sum of solar cell power prior production Excellent low-light perfomance Bypass diode installed to prevent the damage from hot spot effects Anodized aluminum alloy, beautiful and durable 25 years module power output warranty CPE230-60M Series mono-crystalline silicon PV moduleData250-60M245-60M240-60M235-60M230-60M225-60M220-60M215-60M210-60M205-60M195-60M190-60MMaximum Power (Pmax)250245240235230225220215210205195190Oper Circuit Voltage (Voc)37.337.23736.836.836.736.536.436.23635.535.3Short Circuit Current (Isc)8.788.698.628.548.458.368.288.28.148.088.027.96Optimum Operating Voltage (Vmp)30.13029.829.629.529.329.12928.828.628.228Optimum Operating Current (Imp)8.318.178.067.947.87.687.577.427.37.176.926.79Average Efficiency17.44%17.09%16.74%16.39%16.04%15.69%15.34%15.06%14.65%14.30%13.60%13.25%Maximum System Voltage (V)1000Voc Temperature Coefficient.-0.37%/kIsc Temperature Coefficient.+0.03%/kPmax Temperature Coefficient.-0.52%/kFuse Rating15Cell Type6×10,Molo-crystalline silicon cell (156mm×156mm)Junction Box6pics Bypass diode installedWireLength:900mm,Cross area:1×4mm2Front Coverwhite tempered Safety glass,thickness 3.2mmEncapsulation MaterialEVABackplaneComposite filmFrame MaterialAnodized aluminum alloyDimensions1640×990×50mm (L×W×H)Weight20kgMaximum Impact Force2,400Pa (Testing according to IEC 61215)Hail Impact TestMax size 25mm,23m/s impact speedOperating Temperature.-40°C +85°C20Ft (5.92m*2.34m*2.38m)314 Pieces40Ft (12.04m*2.31m*2.38m)646 Pieces40Ft high (11.8m*2.13m*2.72m)680 PiecesUnder Standard Test Condition (STC) of irradiance of 1,000W/m2,spectrum AM 1.5 and cell temperature of 25. Power Tolerance:±3%;Voc/Isc/Vmp/Imp Tolerance:±10%. Fully comply with IEC61215,IEC61739-1/2,and UL1703 quality certification standards.
